high density polyethylene sheets extruded

MELEN 100 (PE-100)

Pressure vessel quality (DIBt)

Features

DIBt approved molding compound
particularly high resistance to stress-cracking chemicals
FNCT > 300 h (ISO 16770,80° C, 4 MPa, 2% ArkopalN 100)
thermoformable
good weldability
physiologically harmless
application temperature from -50 to +80 °C
low weight
normal flammability DIN 4102-B2
good machinability
very good electrical insulating properties
shock and impact resistant

Application

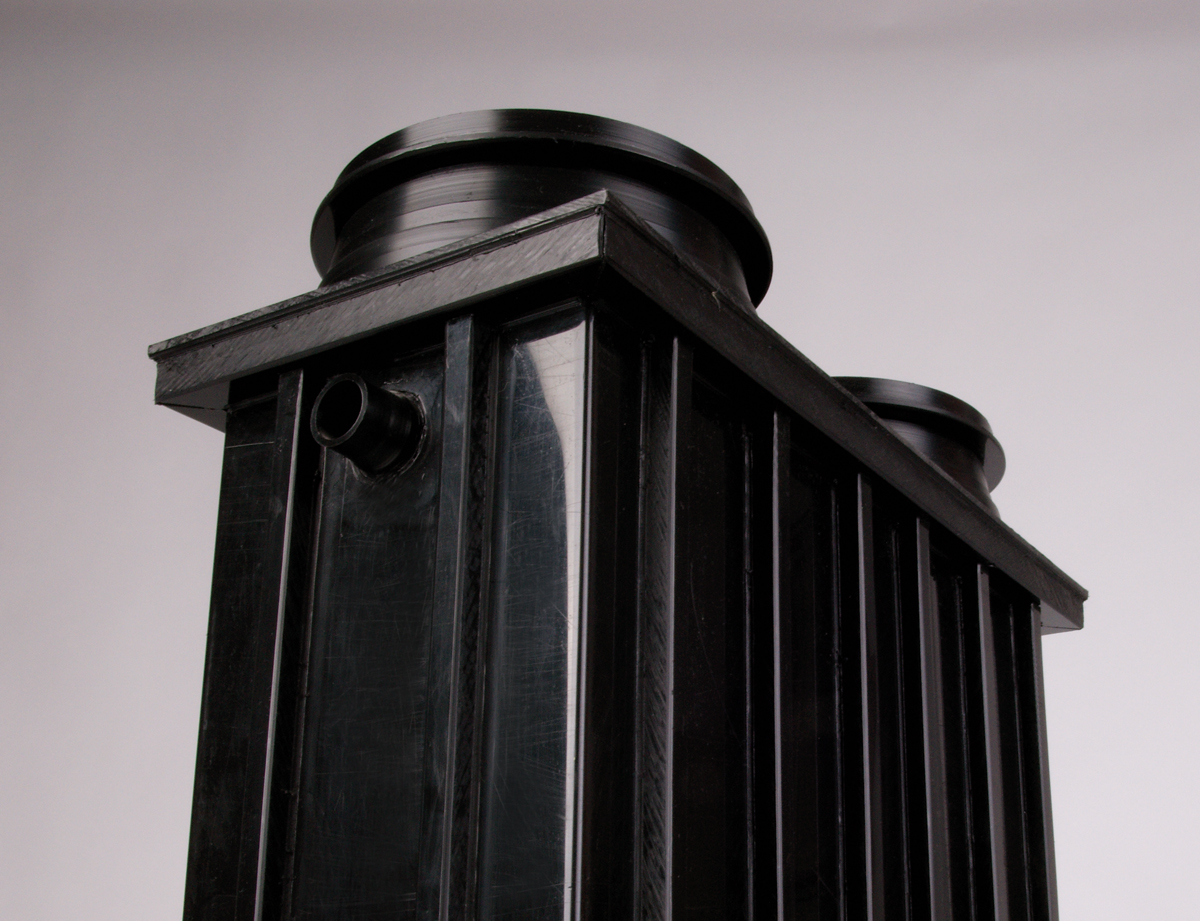

Chemical apparatus and tank construction
Drinking water and waste water technology

Standard dimensions

2000 x 1000 x 4 - 50 mm
3000 x 1500 x 4 - 40 mm
4000 x 2000 x 4 - 50 mm
Can be supplied with inspection certificate 3.1 for containers requiring inspection marks.
Other colors, dimensions and thicknesses on request.

Colors

Black

approx. RAL 9011

Technical data sheet

Chemical resistance

Stock overview, weight list, packaging units

	Extruded				Extruded				Extruded
Thickness	2000 x 1000 mm				3000 x 1500 mm				4000 x 2000 mm
mm	kg/board	boards/pallet	Colors		kg/board	boards/pallet	Colors		kg/plate	boards/pallet	Colors
4	7,68	75			17,28	35			30,72	40
5	9,60	60			21,60	30			38,40	32
6	11,52	50			25,92	20			46,08	25
8	15,36	35			34,56	20			61,44	20
10	19,20	30			43,20	15			76,80	16
12	23,04	25			51,84	12			92,16	13
15	28,80	20			64,80	10			115,20	11
20	38,40	15			86,40	9			153,60	8
25	48,00	12			108,00	6			192,00	6
30	57,60	10			129,60	5			230,40	5
35	67,20	8			151,20	5			268,80	4
40	77,57	7			174,53	4			310,27	4
50	96,96	7							387,84	3

Marked articles are standard articles and available from stock, subject to prior sale. Other colors and dimensions on request.
