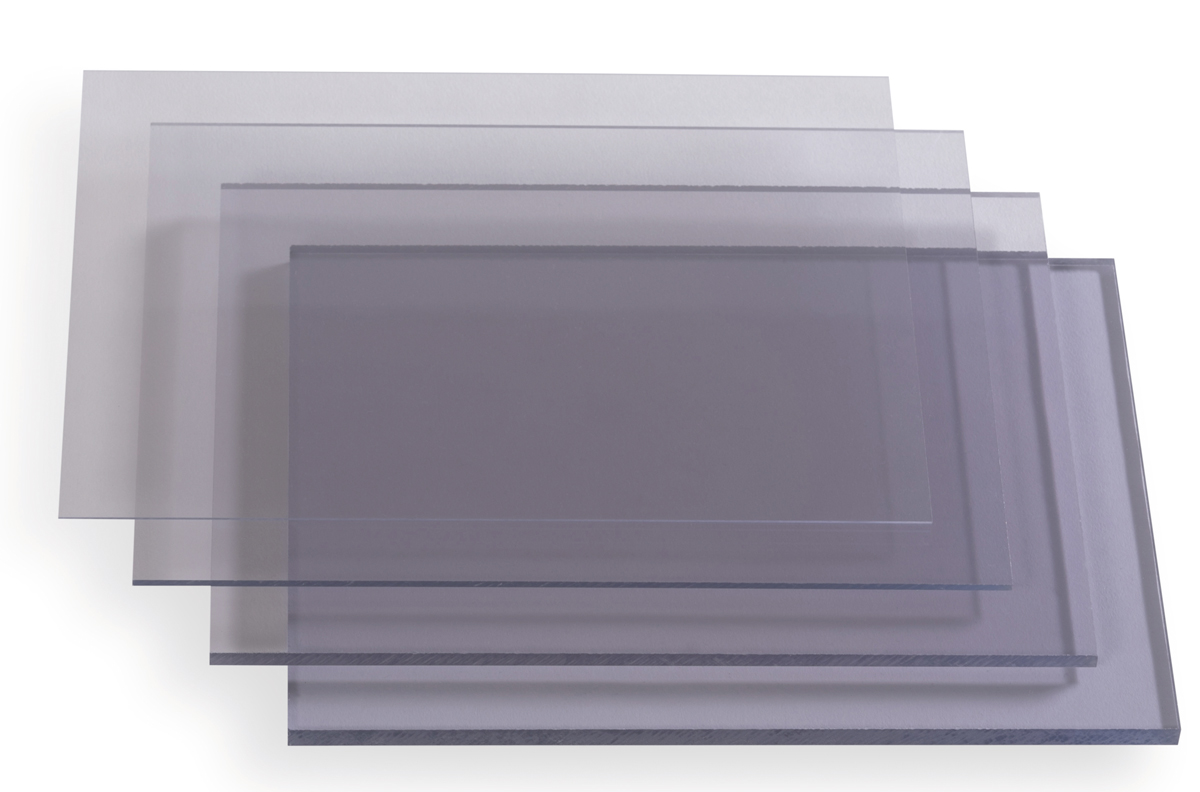

Hard sheets extruded polyvinyl chloride

METRANSPARENT (PVC-U)

transparent

Features

normal impact strength (increased impact strength available on request)
thermoformable
high light transmission
high chemical resistance
flame retardant
electrical insulating properties
with protective film on both sides

Application

Mechanical engineering
Advertising and displays
Machining and forming
Indoor use with high frequency of people
protection at the workplace as well as under chemically aggressive conditions
glare-free, transparent glazing

Standard dimensions

2000 x 1000 x 1.5 to 10 mm
3000 x 1500 x 3, 4, 5, 8 mm
Other dimensions and thicknesses on request.

Colors

transparent with light blue tint (standard in stock)
transparent water clear and bronze (on request)

Stock overview, weight list, packaging units

	Extruded				Extruded
Thickness	2000 x 1000 mm				3000 x 1500 mm
mm	kg/board	boards/pallet	Colors		kg/board	boards/pallet	Colors
1,5	4,26	150
2	5,68	100
3	8,52	70			19,17	30
4	11,36	55			25,56	25
5	14,20	40			31,95	20
6	17,04	35
8	22,72	25			51,12	12
10	28,40	22

Marked articles are standard articles and available from stock, subject to prior sale. Other colors and dimensions on request.
